Solar kits
Six kits. Durable performance for every application. One premium brand.

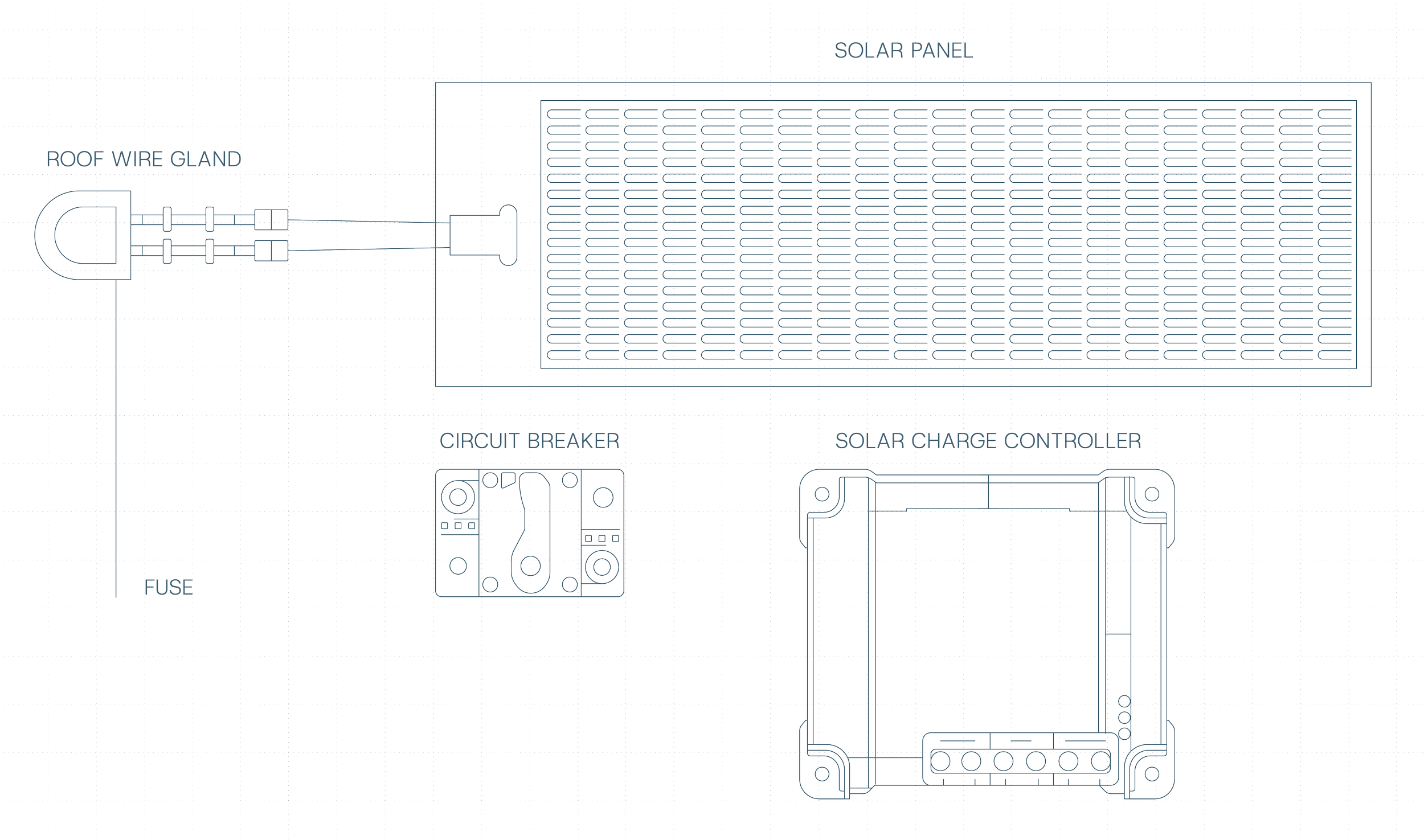

Pre-packaged in one simple kit
Every ARMORCELL kit is engineered for marine, RV, overland, EMS/Fire/Police, construction equipment, and any application where reliable mobile PV power is essential. All solar kits ship complete — ARMORCELL solar panel, MPPT controller, sealed roof wire gland with integrated PV wires, inline MC4 fuse, circuit breaker, and accessories. Five-year warranty.
38W Battery maintenance kit
Permanent trickle charge for starter and auxiliary batteries. Silently keeps batteries conditioned and ready – whether docked, parked, or stored.
Panel size: 13.7 x 34.2”
80W Solar charging kit
Reliable solar charging for everyday power needs. Maintains battery charge and powers accessories during use or between trips.
Panel size: 13.7" × 67.3"
80W Solar charging kit - square format
Square-format panel for applications where layout space is wide rather than long. Same proven ARMORCELL performance in a different footprint.
Panel size: 26.0"×34.6"
270W High-output solar kit
Maximum solar output for high-demand applications and full power independence. Built for those who live, work, or operate off-grid.
Panel size: 26.2" × 108.7"
160W Solar charging kit
Robust solar output for extended off-grid use. Powers electronics, lighting, appliances, and accessories on long trips away from shore power.
Panel size: 26.2" × 67.3"
38W Portable battery maintenance kit
Grommet-mount panel with smooth back for tool-free temporary placement anywhere. Includes MPPT controller and battery clips for instant connection.
Panel size: 14.8" × 34.6"

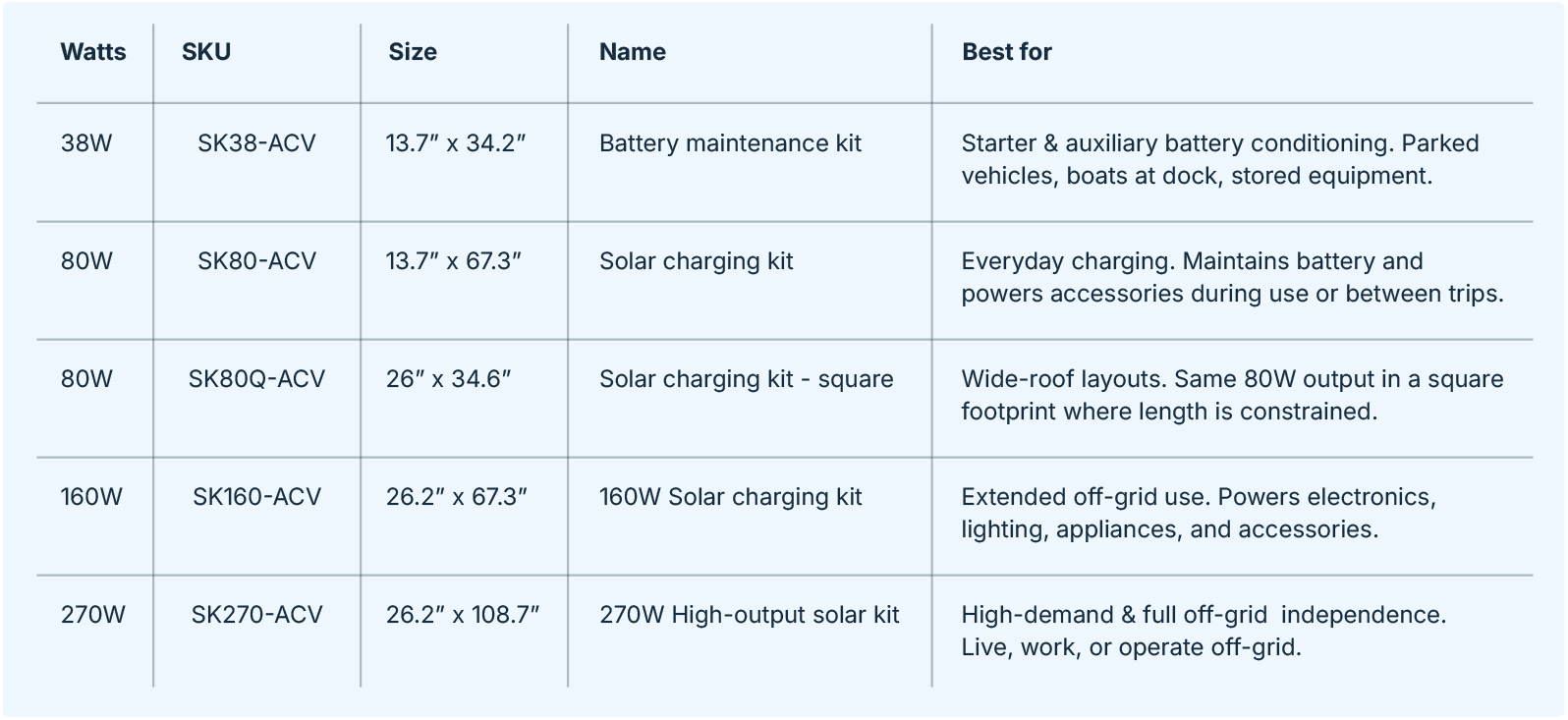

Permanent installation kits
Peel-and-stick ARMORCELL panel. Victron MPPT controller. Ready to wire, easy to install. These systems produce clean silent solar power and efficiently deliver it to your vehicle battery.

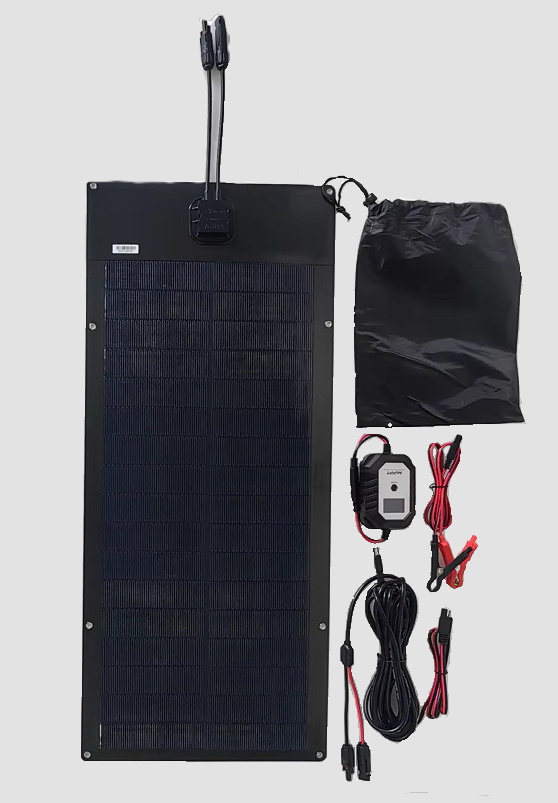

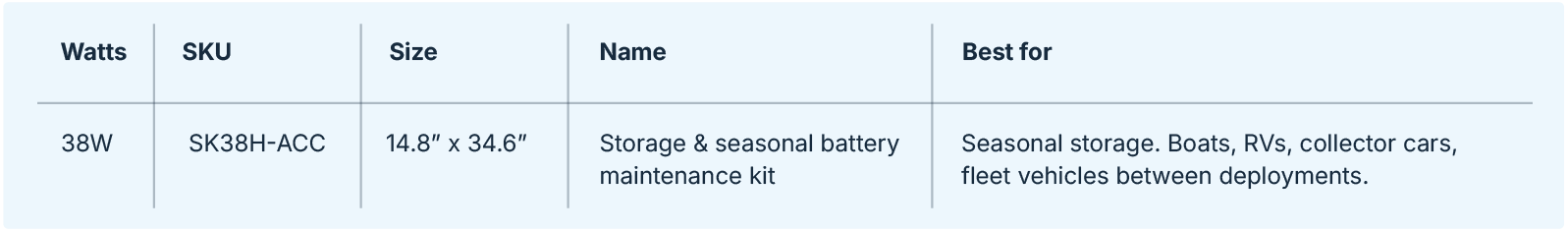

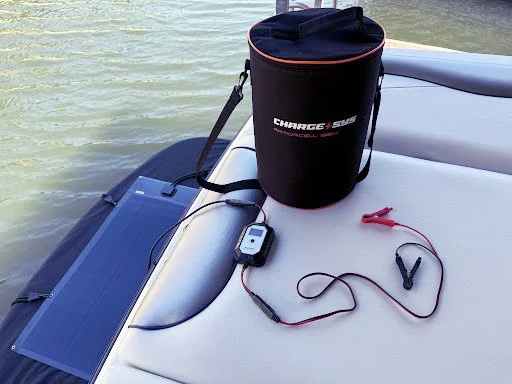

Portable battery maintenance kit
No tools. No adhesive. Easy Setup
Premium ARMORCELL durability in a portable kit. Simply place the panel, attach the controller leads to the battery and solar panel, and let the sun do the rest. Ideal for any vehicle, vessel, or equipment in temporary, seasonal, or long-term storage. Includes high-efficiency MPPT charge controller and battery clips for instant connection. The 20 foot solar extension wire allows the panel to be located remotely from the vehicle if desired.

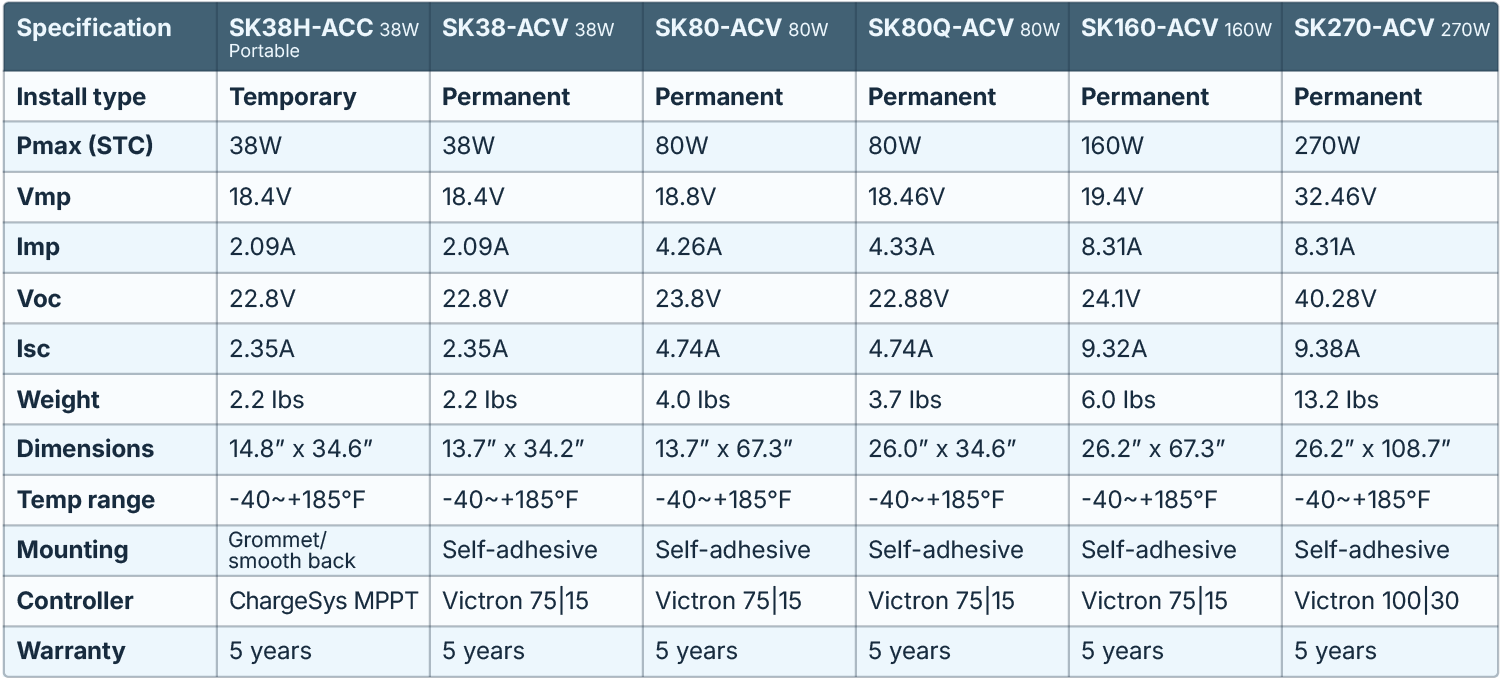

Full technical specifications
All data at STC: 1000W/m², 77°F, AM=1.5
SK38H-ACC portable kit includes MPPT controller and battery clips for direct battery connection — no permanent install required. All permanent kits (ACV) include Victron SmartSolar MPPT controller, roof wire gland, 10A inline MC4 fuse, 25A circuit breaker, and accessories.

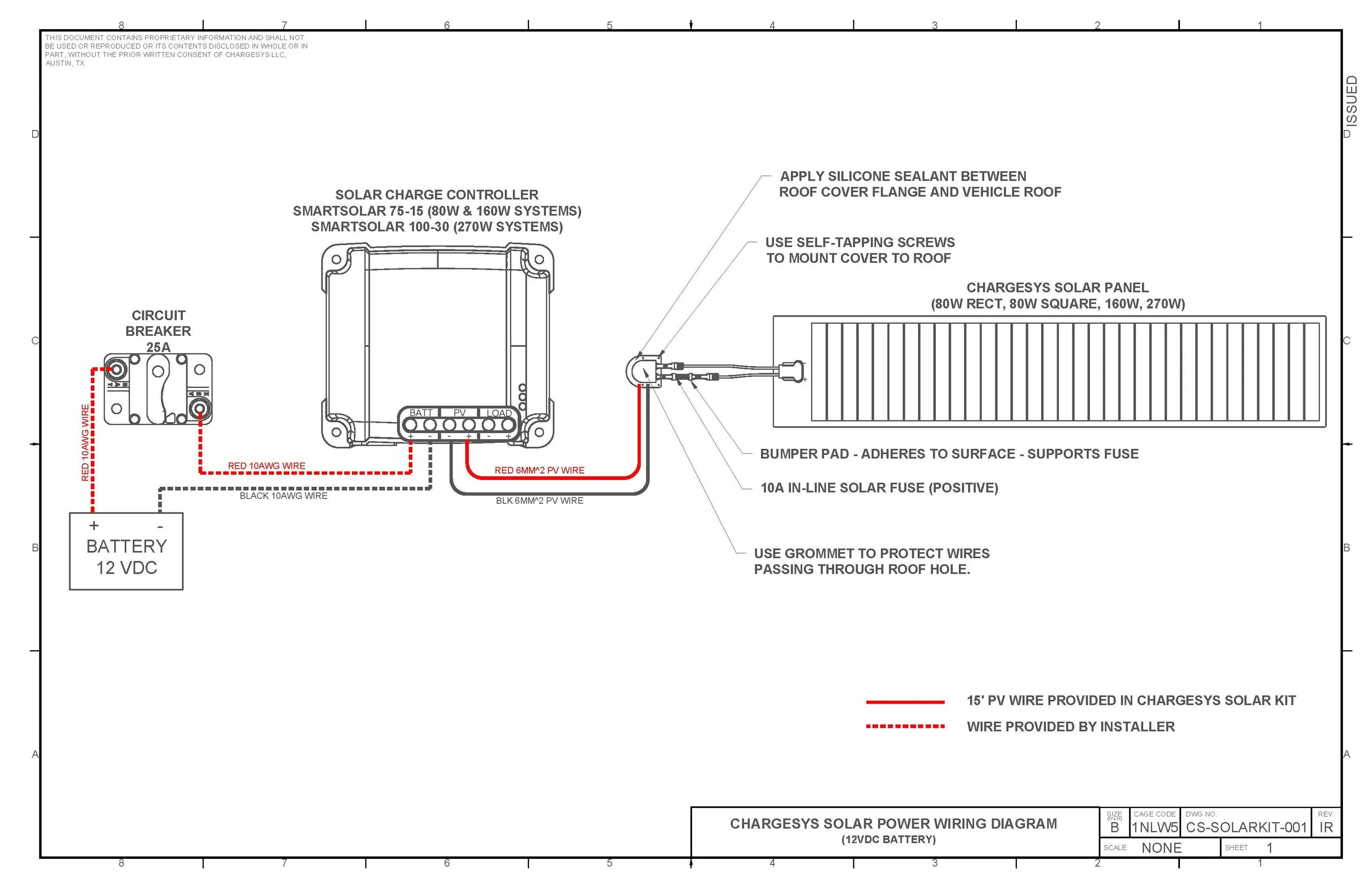

System wiring
Every permanent-install ARMORCELL kit is designed for straightforward installation. The low-profile self-adhesive panel mounts securely to the roof and it’s wire leads click into the pre-terminated roof gland assembly. The roof-gland’s 15’ PV wires route through a protective grommet and connect to the Victron MPPT SmartSolar charge controller. The marine grade circuit breaker protects the charger and 12V battery circuit. When installing, apply silicone sealant under roof cover flanges to complete the weatherproof seal.
